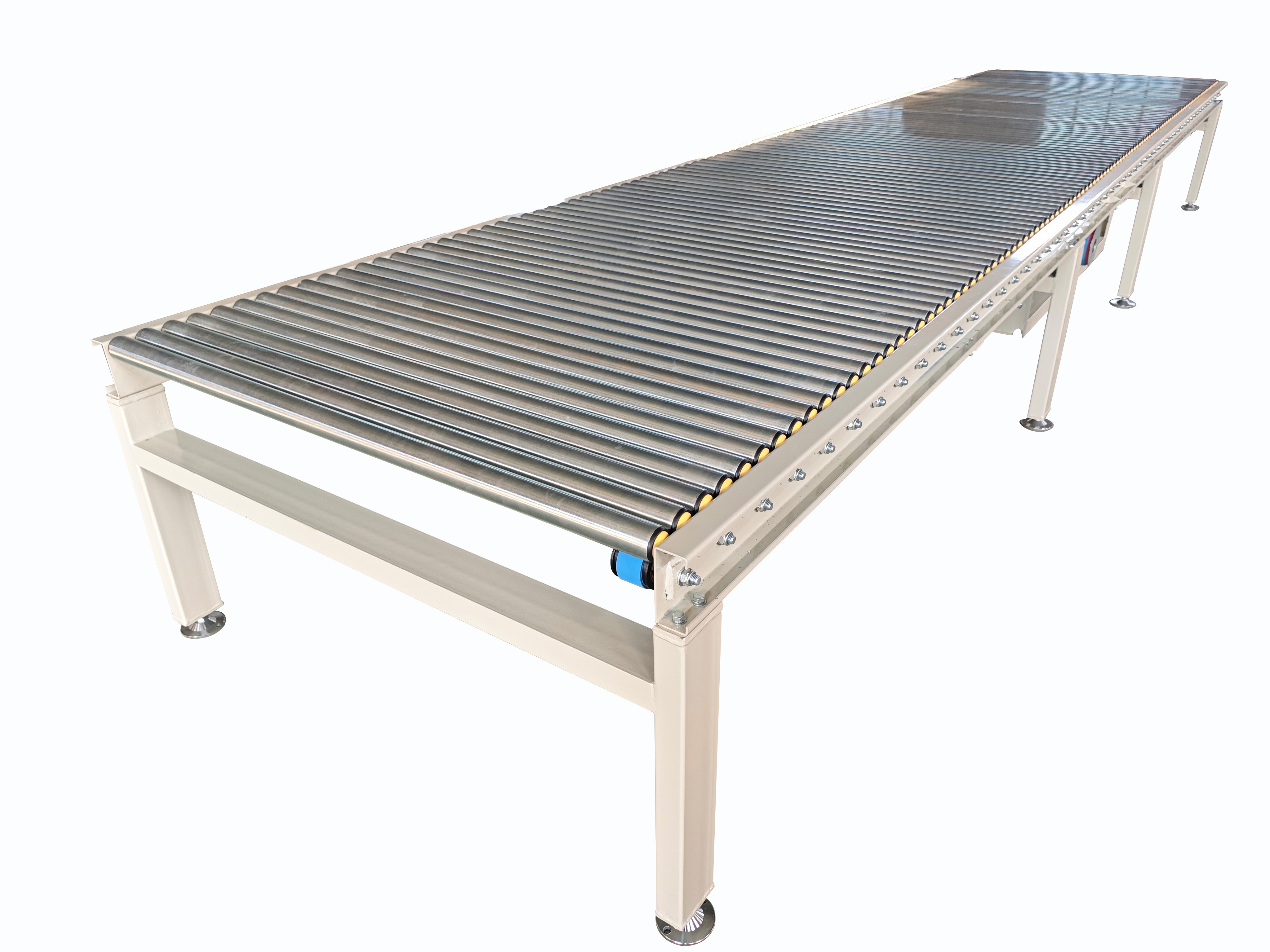

The powered roller conveyor is one of the core conveying systems in automated corrugated carton production lines. It is specially designed for the efficient transportation of corrugated sheets, semi-finished boards, and finished cartons.
It is widely used in processes such as material preparation, printing, die-cutting, and palletizing. The conveyor can be seamlessly integrated with automated production lines, significantly improving overall production efficiency.
Its modular structural design ensures both durability and flexibility, making it adaptable to different workshop environments and various production requirements.
Rollers are driven by an external power source, actively rotating to move goods forward.
Integrated intelligent control system: PLC control combined with a touchscreen interface, supporting speed adjustment, fault alarm, and remote monitoring functions.
Modular design. The basic structure consists of a frame, rollers, drive unit, and supporting legs.
Strong conveying capacity with high load-bearing performance, especially suitable for pallet and stacked goods transportation.
Conveying Speed: 18–60 m/min (adjustable)
Effective Working Width: 500–2800 mm (single-row rollers, customizable)
Motor Power: 0.75 kW–3 kW (variable frequency motor)
Power Supply: 380V / 50Hz (customizable)
Frame: Painted steel structure with high load-bearing capacity, resistant to deformation.
