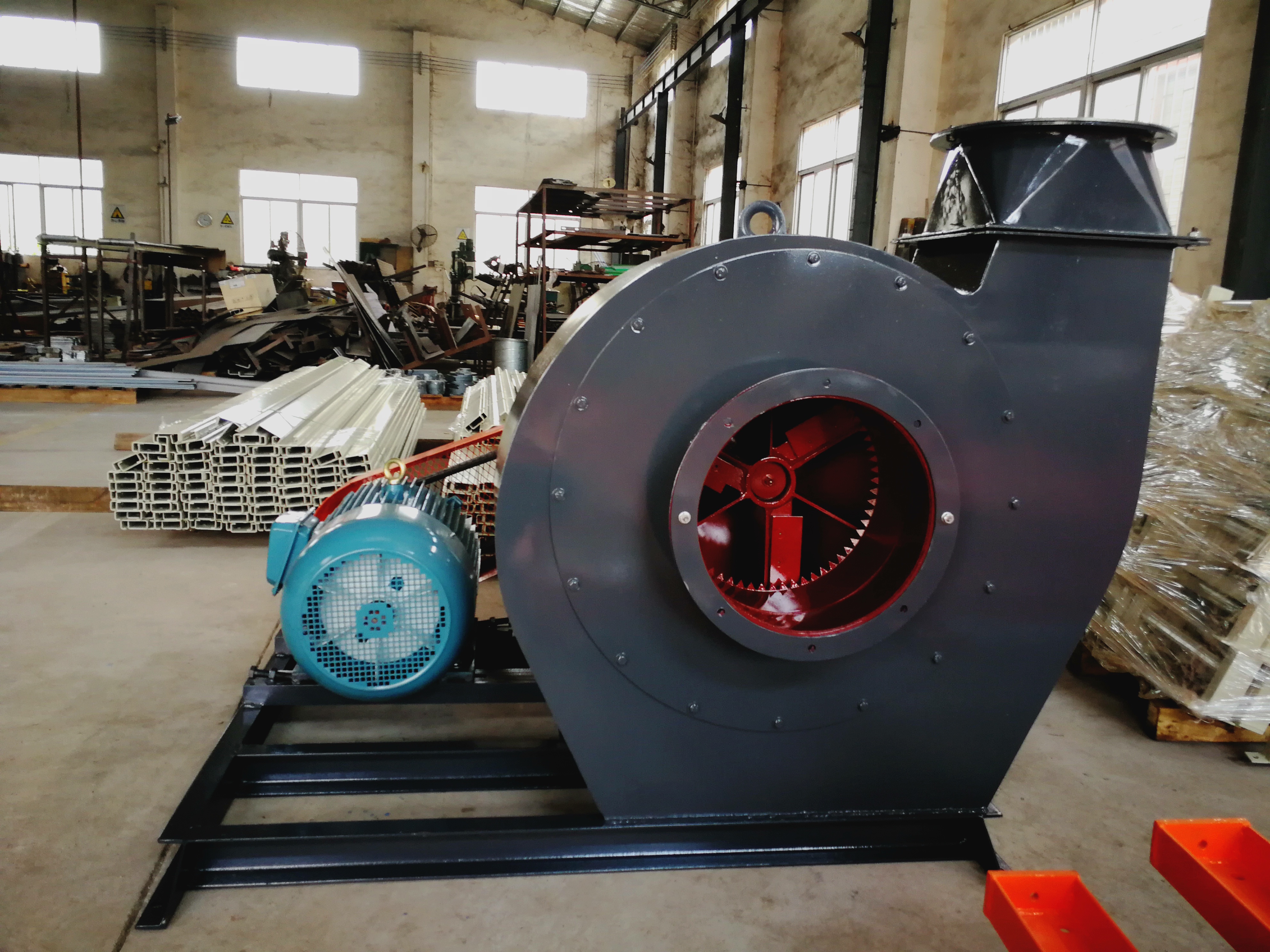

Functions of trim blower include cutting waste paper into scrap, and providing transport power to convey scrap to the baling room through pipeline for further processing. It is usually equipped with a muffler and an air separator, so as to reduce noise and dust pollutions.
Features: high energy consumption, high noise and dust pollutions. (so that its usage should be minimized!)
Main technical parameters
|
g/m² |
m |
KW |
|
≤200 |
20 |
11-15 |
|
≤300 |
50 |
18.5-30 |
|
≤300 |
50-120 |
22-37 |
| Model | Air Pressure(Pa) | Air Volume (m³/h) | Rotation Speed (r/min) | Power (kw) | The Diameter of Air inlet Pipe (mm) | The Diameter of Air Outlet PIpe (mm) |
| TY-6.85CG-18kw | 2374-3110 | 4704-8939 | 1900 | 18.5 | φ250 | φ250 |
| TY-6.85CG-22kw | 2900-3800 | 5200-9880 | 2100 | 22 | φ250 | φ300 |
| TY-6.85CG-30kw | 3478-4558 | 5695-10821 | 2300 | 30 | φ300 | φ300 |
| TY-6.85CG-37kw | 3947-5172 | 6066-11526 | 2500 | 37 | φ300 | φ350 |
| TY-6.85CG-45kw | 4098-5368 | 6870-13057 | 1900 | 45 | φ300 | φ350 |
